With the ATU table system you can assemble your individual table with 2 legs.
Next to the?Part Number?are zip files containing 3D CAD in?.STP & .X_T

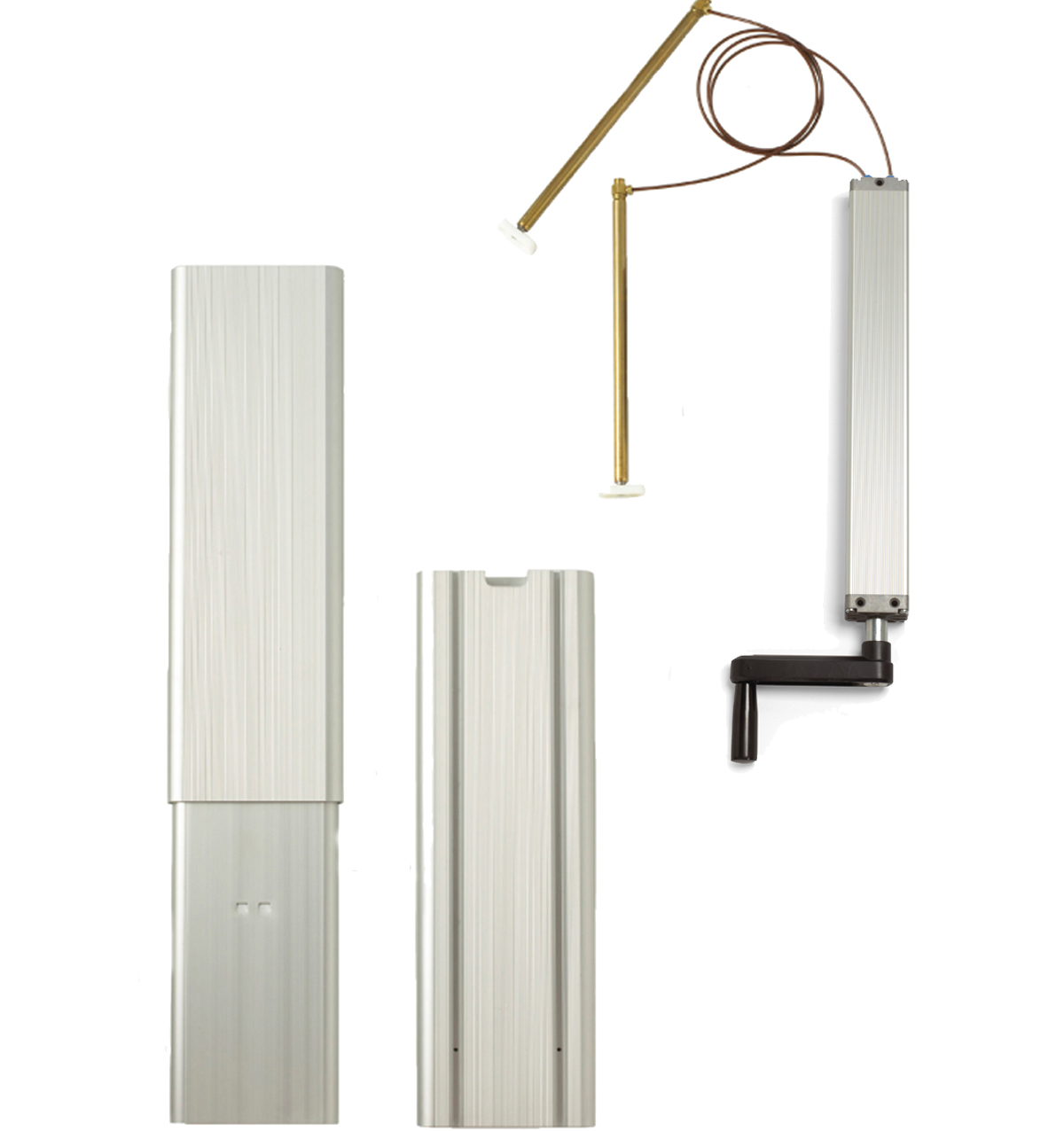

Crank Driven Systems
Crank Driven PDF Drawings: ATU Assembly | Pump
For the charted drawings refer to the Pump and Cylinder part numbers below.
| Adj. Range | ATU Length | Crank Driven Part Number | Pump | Cylinder?(x2) | Purchase |
|---|---|---|---|---|---|
| 200 / 7.9?(mm/in.) | 500 / 19.7?(mm/in.) | MLS-00060?.STP .X_T? | Q2812 | CE420 | Coming Soon |
| 300 / 11.8?(mm/in.) | 600 / 23.6?(mm/in.) | MLS-00061 .STP .X_T? | Q2818 | CE430 | Coming Soon |

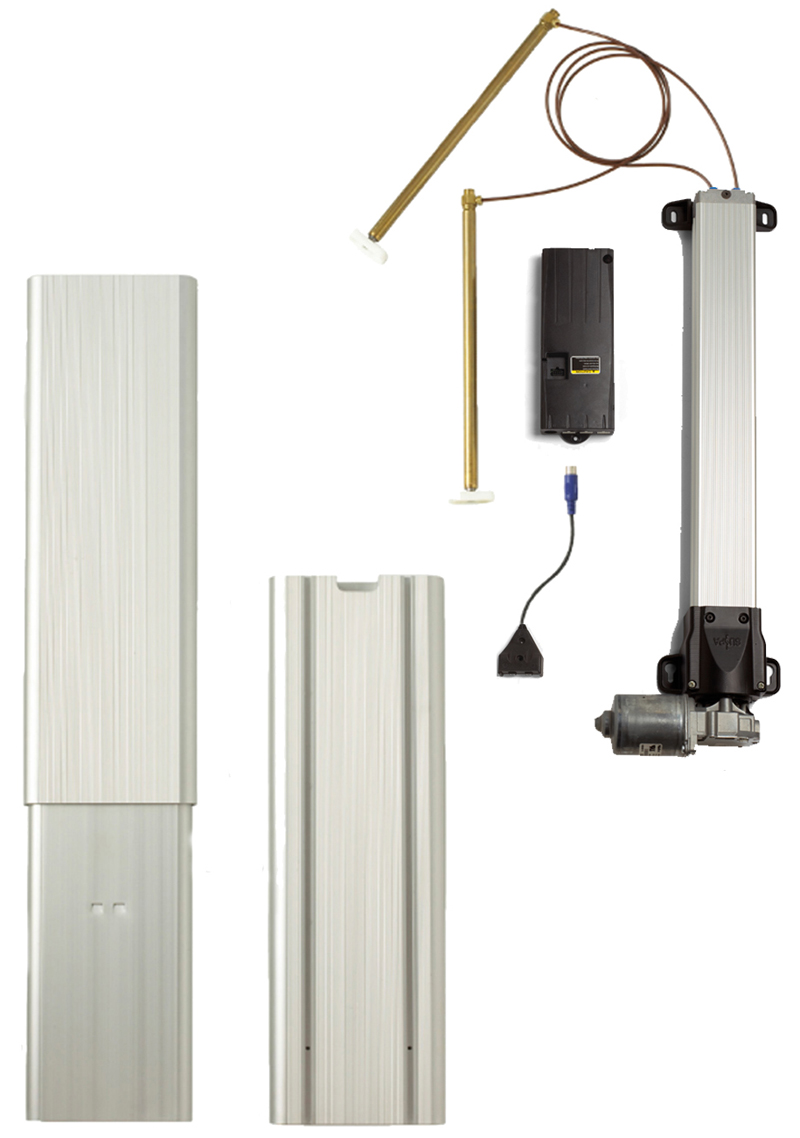

Motor Driven Systems (120V)
Motor Driven PDF Drawings: ATU Assembly |?Pump | Controller?| Switch?| Cylinder
For the charted drawings refer to the Pump and Cylinder part numbers below.
| Adj. Range | ATU Length | Motor Driven Part Number | Pump | Cylinder?(x2) | Purchase |
|---|---|---|---|---|---|
| 200 / 7.9?(mm/in.) | 500 / 19.7?(mm/in.) | MLS-00062?.STP?.X_T? | Q2812 | CE420 | Coming Soon |
| 300 / 11.8?(mm/in.) | 600 / 23.6?(mm/in.) | MLS-00063?.STP?.X_T? | Q2818 | CE430 | Coming Soon |
