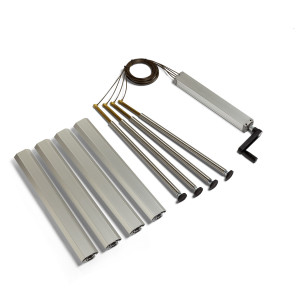

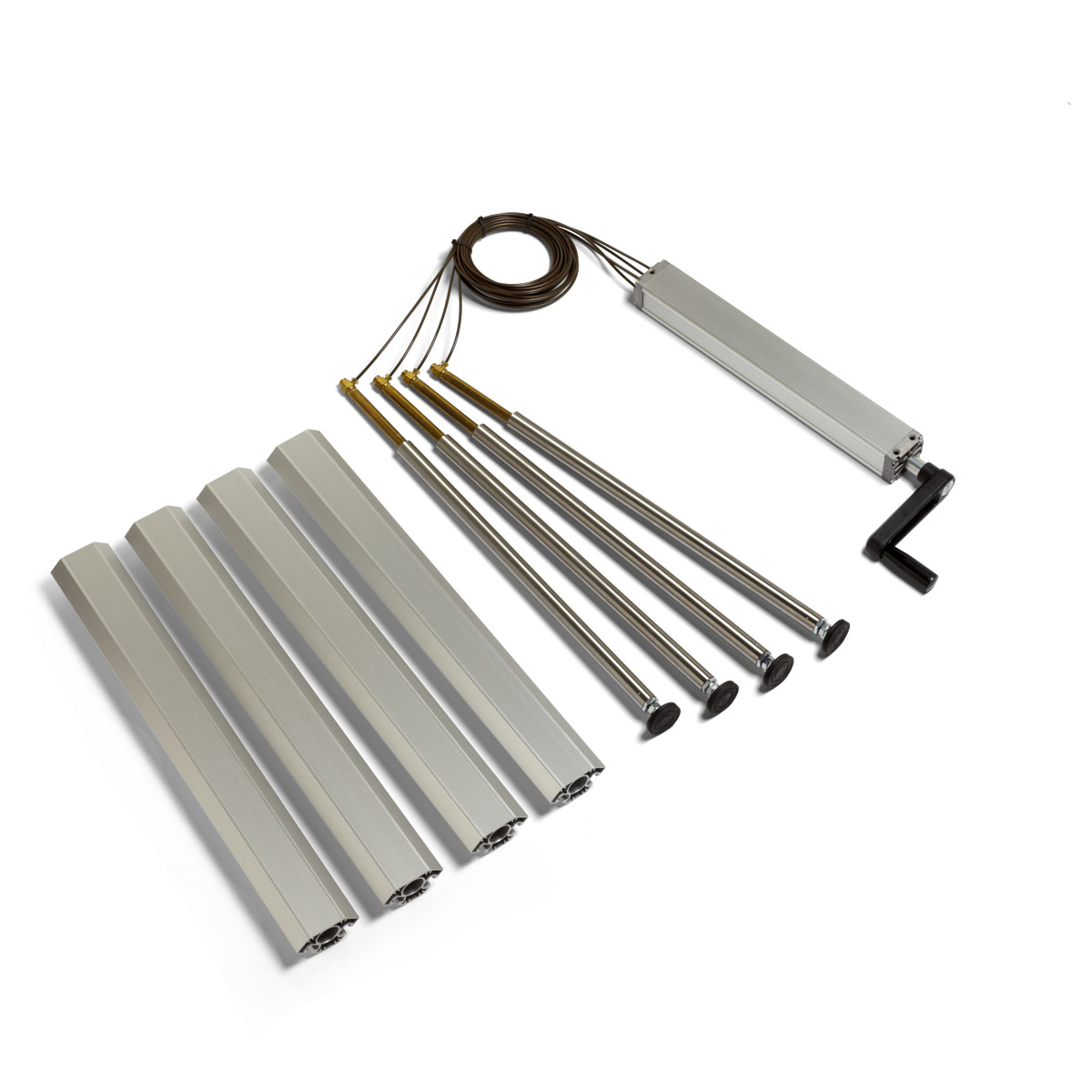

The Corner Leg system is supplied with ready-to install corner legs made of standard aluminum profiles.
Next to the?Part Number?are zip files containing 3D CAD in?.STP & .X_T
Crank Driven Systems
Crank Driven PDF Drawings:?Pump | Cylinder?|?Glide
For the charted drawings refer to the Pump and Cylinder part numbers below.
| Lift Capacity | Adj. Range | Crank Driven Part Number | Pump | Cylinder?(x4) | Purchase |
|---|---|---|---|---|---|
| 340 / 750?(kg / lbs.) | 150 / 5.9?(mm/in.) | MLS-00040?.STP?.X_T? | Q4809 | CL450 | Coming Soon |
| 340 / 750?(kg / lbs.) | 200 / 7.9?(mm/in.) | MLS-00041?.STP?.X_T? | Q4812 | CL450 | Coming Soon |
| 340 / 750?(kg / lbs.) | 300 / 11.8?(mm/in.) | MLS-00042?.STP?.X_T? | Q4818 | CL450 | Coming Soon |
| 340 / 750?(kg / lbs.) | 400 / 15.7?(mm/in.) | MLS-00043?.STP?.X_T? | Q4824 | CL450 | Coming Soon |
Motor Driven Systems (120V)
Motor?Driven PDF Drawings:?Pump | Cylinder?| Switch?| Controller?|?Glide
For the charted drawings refer to the Pump and Cylinder part numbers below.
| Lift Capacity | Adj. Range | Motor Driven Part Number | Pump | Cylinder?(x4) | Purchase |
|---|---|---|---|---|---|
| 340 / 750?(kg / lbs.) | 150 / 5.9?(mm/in.) | MLS-00044?.STP?.X_T? | Q4809 | CL450 | Coming Soon |
| 340 / 750?(kg / lbs.) | 200 / 7.9?(mm/in.) | MLS-00045?.STP?.X_T? | Q4812 | CL450 | Coming Soon |
| 340 / 750?(kg / lbs.) | 300 / 11.8?(mm/in.) | MLS-00046?.STP?.X_T? | Q4818 | CL450 | Coming Soon |
| 340 / 750?(kg / lbs.) | 400 / 15.7?(mm/in.) | MLS-00047?.STP?.X_T? | Q4824 | CL450 | Coming Soon |
